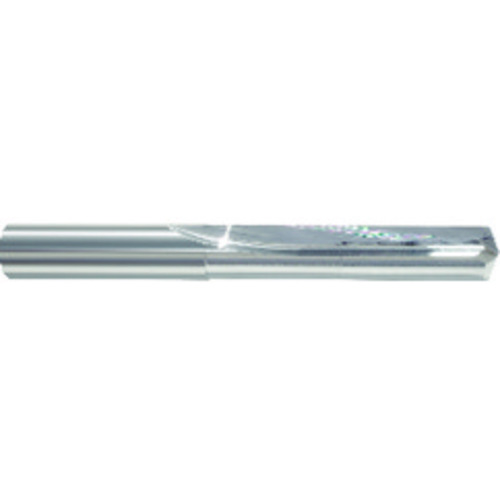

5376 3/32″ ST/FL DRL SC
| Drill Bit Size / Cutting Diameter (DC) | 3/32″ | Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/32″ | Point Shape | Notch |
| Decimal Equivalent | 0.0938″ | Measurement Type | Inch |
| Length Group | Straight Flute | Series/List # | 5376 |
| Coating | Uncoated | Usable Length (LU) | 3/4″ |
| Connection Diameter Machine Side (DCONMS) | 3/32″ | Length Chip Flute (LCF) | 3/4″ |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 1-3/4″ |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 0 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Cutting Edge Material | Carbide |
Product Features
| Remarks | |
Country of Origin | USA |
Shipping Info
LocalField10
0
Package Length
3.12500
Package Width
.37500
Package Height
.37500
Package Weight
0.02
