NG04 I 3XD SC

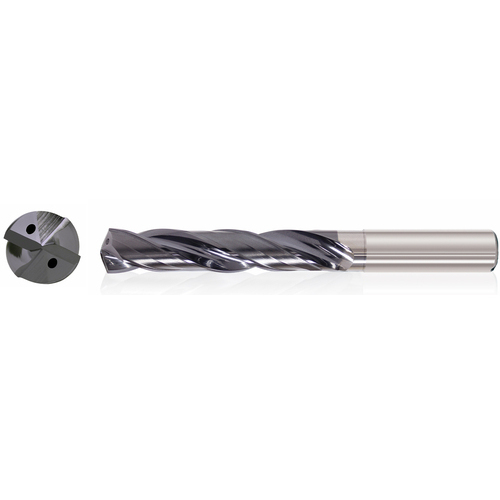

‎Solid Carbide Drill; 0.272″ Dia. × 0.272″ Shank Dia. × 3″ OAL × 1-1/2″ LCF ; 135 Degrees ; 3xD ; 2 FL ; Series DBIN26

Item # 23690

Brand: Morse Cutting Tools

MFG #: 23690

Legacy Part #: MT301023690

UPC #: 01023690 | 68612506100 | 686125061005 | 686125061005

Trade Name: MORSE New Generation

Decimal Equivalent

0.272″

Series/List #

DBIN26

Length Group

3xD

Usable Length (LU)

‎1-1/2″

Connection Diameter Machine Side (DCONMS)

0.272″

Length Chip Flute (LCF)

‎1-1/2″

Coolant Supply Property (CSP)

External

Overall Length (OAL)

3″

Point Angle (SIG)

135 Degrees

Flute Count (NOF)

Tool Type

‎High Performance Sheardrill Aluminum, 3xD - 5xD

Product Features

Country of Origin

USA

Package Length

3.00000

Package Width

1.00000

Package Height

1.00000

Package Weight

0.01
