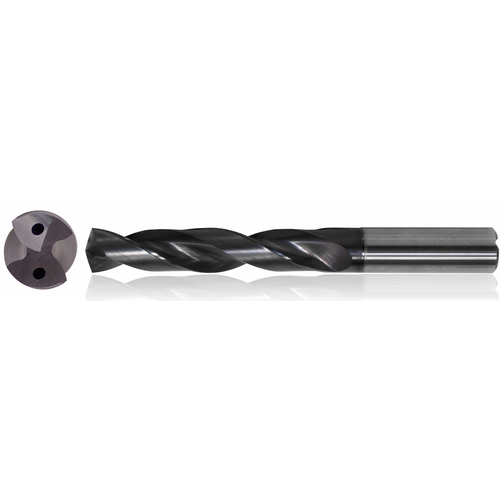

7.3 mm Dia. × 8 mm Shank × 53 mm Flute Length × 91 mm OAL, 5xD, TiAlCN, 2 Flute, Coolant Thru, h6, Cylindrical, Solid Carbide Drill Series/List #5612
| Drill Bit Size / Cutting Diameter (DC) | 7.3 mm | Shank Standard | h6 |
| Decimal Equivalent | 0.2874″ | Tool Type | High Performance Carbide Drill |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 7.3 mm | Flute Type | Helical |
| Length Group | 5xD | Measurement Type | Metric |
| Coating | TiAlCN | Series/List # | 5612 |
| Applicable Material | Stainless Steel | Hard Materials | Usable Length (LU) | 53 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Length Chip Flute (LCF) | 53 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 91 mm |
| Point Angle (SIG) | 30 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 53 mm | Feature | SINGLE MARGIN DRILL, COOLANT THRU |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.157
