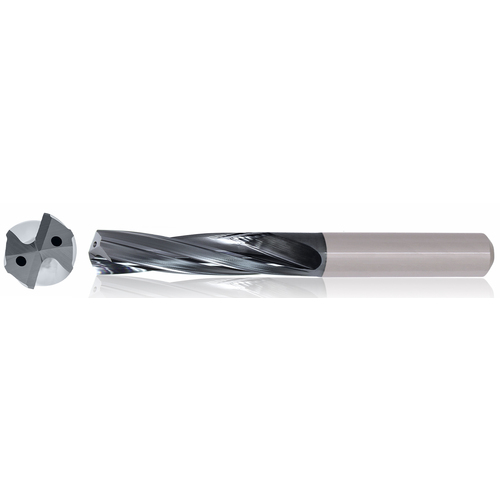

5/32″ Dia. × 6 mm Shank × 36 mm Flute Length × 74 mm OAL, 5xD, TiAlCN, 2 Flute, Coolant Thru, h6, Cylindrical, Solid Carbide Drill Series/List #5613
| Drill Bit Size / Cutting Diameter (DC) | 5/32″ | Shank Standard | h6 |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 5/32″ | Tool Type | High Performance Carbide Drill |
| Decimal Equivalent | 0.1563″ | Flute Type | Helical |
| Length Group | 5xD | Measurement Type | Inch |
| Coating | TiAlCN | Series/List # | 5613 |
| Applicable Material | | Cast Iron | | Usable Length (LU) | 36 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Length Chip Flute (LCF) | 36 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 74 mm |
| Point Angle (SIG) | 15 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 36 mm | Feature | TRIPLE-MARGIN DRILL, COOLANT THRU |
| Flute Helix Angle (FHA) | 15 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.15
