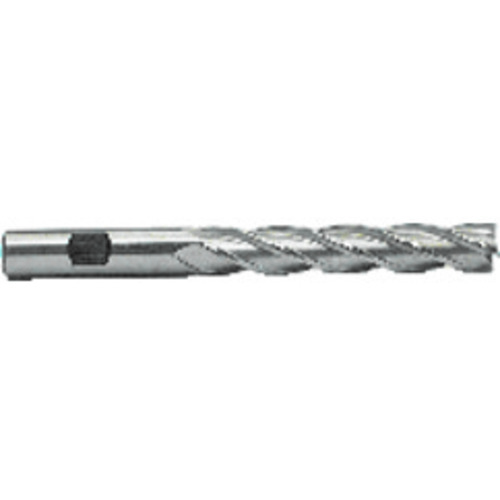

5/8″ × 5/8″ × 4″ × 6 1/8″ 4 Flute Single End HSSCo Finishing Center Cutting End Mill-Uncoated Series/List #4588
SQ End Mill; 5/8″ Dia. × 4″ LOC × 5/8″ Shank Dia. × 6-1/8″ OAL ; 4 FL ; 4″ LBS ; HSSCo ; Uncoated ; Series 4588
| Cutting Diameter (DC) | 5/8″ | Usable Length (LU) | 4″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Application | Finishing |
| Depth of Cut Maximum (APMX) | 4″ | Tool Type | Single End |
| Overall Length (OAL) | 6-1/8″ | Length Group | Extra Long |
| Cutting Edge Material | HSSCo | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Style | Finishing |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.625″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Center Cutting | Series/List # | 4588 |
Product Features
| Remarks | •M-42 8% Cobalt Multi-Flute Extra Long •Single End Mills • Center Cutting | Country of Origin | S.Korea |
Shipping Info
Package Length
5.00000
Package Width
.75000
Package Height
.75000
Package Weight
0.412
