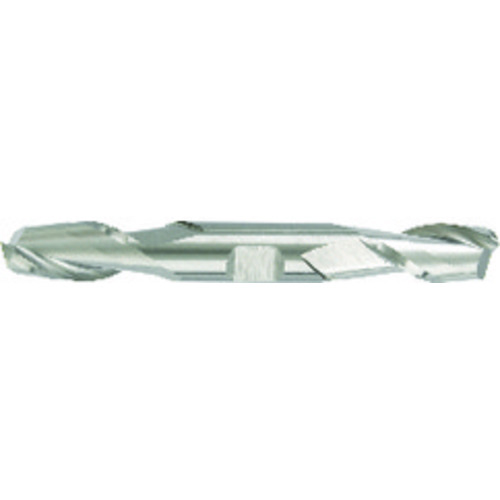

5/16″ × 3/8″ × 3/4″ × 3 1/2″ 2 Flute Double End Carbide Finishing Center Cutting End Mill-TiN Series/List #5896G
SQ End Mill; 5/16″ Dia. × 3/4″ LOC × 3/8″ Shank Dia. × 3-1/2″ OAL ; 2 FL ; 3/4″ LBS ; Carbide ; TiN ; Series 5896G
| Cutting Diameter (DC) | 5/16″ | Usable Length (LU) | 3/4″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Application | Finishing |
| Depth of Cut Maximum (APMX) | 3/4″ | Tool Type | Double End |
| Overall Length (OAL) | 3-1/2″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TiN | Style | Finishing |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.3125″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Square | Series/List # | 5896G |
Product Features
| Remarks | •Solid Carbide 2-Flute Double End Mills •TiN Coated Regular Length | Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
.37500
Package Weight
0.141
