5981 3/16X3/8 CR .01 4F

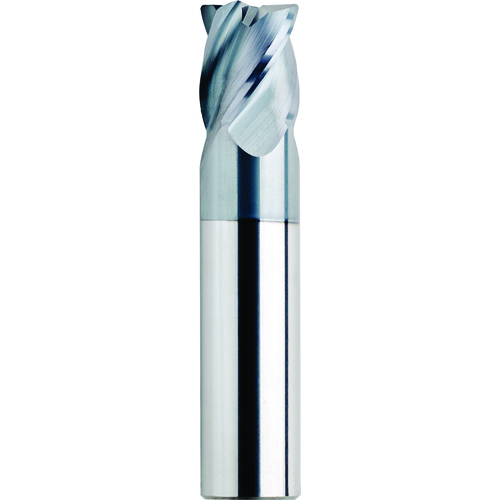

SQ End Mill; 3/16″ Dia. × 3/8″ LOC × 3/16″ Shank Dia. × 2″ OAL ; 0.01″ RE ; 4 FL ; Carbide ; AlTiCrN ; Series 5981
| Cutting Diameter (DC) | 3/16″ | Corner Radius (RE) | 0.01″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Tool Type | Single End |
| Depth of Cut Maximum (APMX) | 3/8″ | Length Group | Stub |
| Overall Length (OAL) | 2″ | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Style | Finishing |
| Coating | AlTiCrN | Decimal Equivalent | 0.1875″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | Variable | Series/List # | 5981 |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.01″ |
| End Shape | Corner Radius | Single / Double End | Single End |
| Usable Length (LU) | 3/8″ | Center Cutting | Yes |
| Applicable Material | | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Trade Name | VP2 End Mill |
| Application | Finishing |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
.37500
Package Weight
0.035
