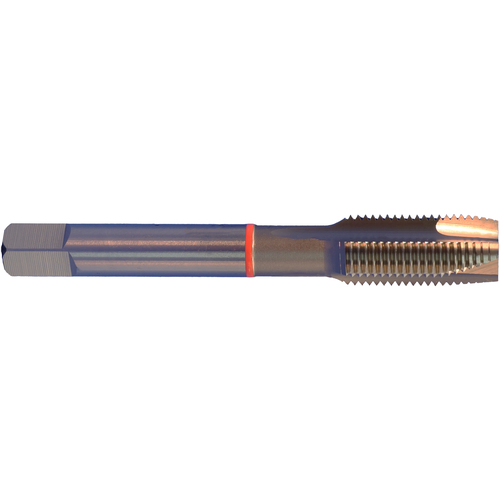

M12 × 1.75 Dia-D6-3 FL-Powdered Metal-Std Spiral Point Tap-Red Ring
Spiral Point Tap; M12 × 1.75 mm ; 3-3/8″ OAL ; 3 FL ; HSS ; Steam Oxide ; D6 ; Series 3095
| Thread Standard | NC | Tool Type | High Performance Tap |
| Thread Size | M12 × 1.75 | Special Feature | High Tensile - Red Band |
| Thread Diameter Size (TDZ) | M12 | Applicable Material | | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 1.75 mm | Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Thread Tolerance Class (TCTR) | D6 | Thread Cutting Part Length (THL) | 0.984″ |
| Usable Length (LU) | 0.937″ | End Shape | Spiral Point |
| Overall Length (OAL) | 3-3/8″ | Cutting Direction (HAND) | Right Hand |
| Chamfer | Plug | Coolant Supply Property (CSP) | External |
| Coating | Steam Oxide | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Series/List # | 3095 |
| Cutting Edge Material | HSS |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.1
