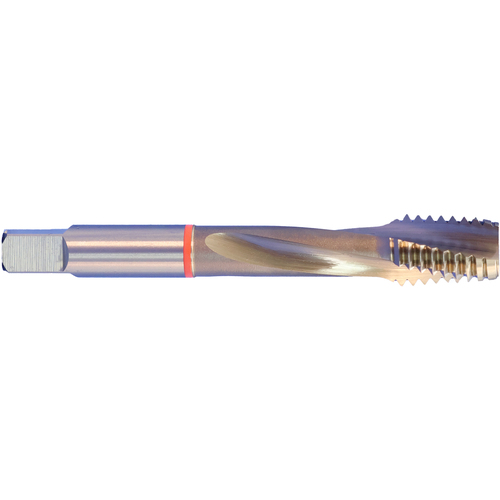

M4X0.7 D4 3FL SP FL TAPS
Spiral Flute Tap; M4 × 0.7 mm ; 2-1/8″ OAL ; 3 FL ; HSS ; Steam Oxide ; D4 ; Series 3096
| Thread Diameter Size (TDZ) | M4 | Thread Tolerance Class (TCTR) | D4 |
| Thread Pitch (TP) | 0.7 mm | Special Feature | High Tensile - Red Band |
| Thread Standard | NC | Tool Type | High Performance Tap |
| Overall Length (OAL) | 2-1/8″ | Chamfer | Semi-Bottoming |
| Thread Cutting Part Length (THL) | 0.276″ | Coating | Steam Oxide |
| Connection Diameter Machine Side (DCONMS) | 0.168″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Applicable Material | | Super-Alloys / Titanium | | Series/List # | 3096 |
| Cutting Edge Material | HSS |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.025
