M10X1.25 DIA-D5-3 FL-

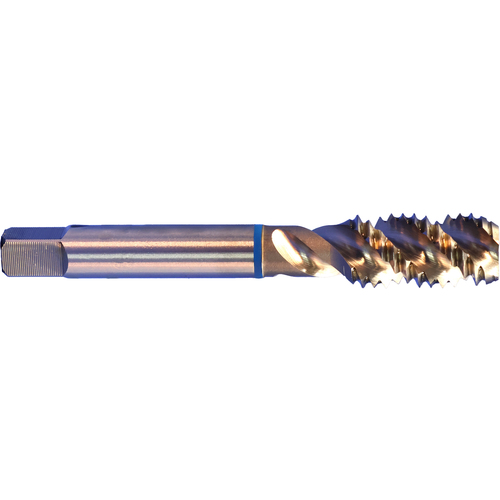

Spiral Flute Tap; M10 × 1.25 mm ; 2-15/16″ OAL ; 3 FL ; HSS ; Uncoated ; D5 ; Series 3092
| Thread Diameter Size (TDZ) | M10 | Thread Tolerance Class (TCTR) | D5 |
| Thread Pitch (TP) | 1.25 mm | Special Feature | General Purpose - Blue Band |
| Thread Standard | NC | Tool Type | High Performance Tap |
| Overall Length (OAL) | 2-15/16″ | Chamfer | Semi-Bottoming |
| Thread Cutting Part Length (THL) | 0.512″ | Coating | Uncoated |
| Connection Diameter Machine Side (DCONMS) | 0.381″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Applicable Material | | Steel | | Series/List # | 3092 |
| Cutting Edge Material | HSS |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.1
