5968 3/8″ × 3/8″ 4FL SE

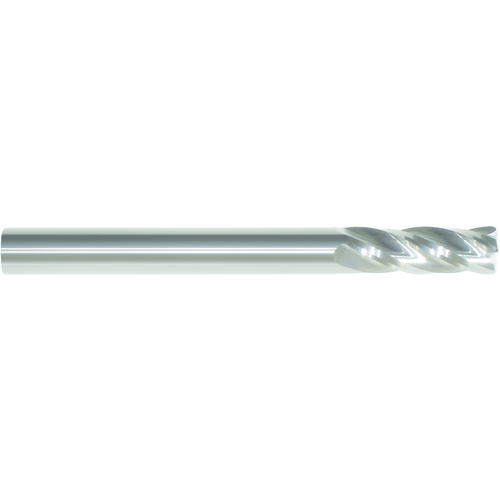

SQ End Mill; 3/8″ Dia. × 1″ LOC × 3/8″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide ; Uncoated ; Series 5943
| Cutting Diameter (DC) | 3/8″ | Application | Finishing |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Tool Type | Single End |
| Depth of Cut Maximum (APMX) | 1″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 4″ | Style | Finishing |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.375″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | 5943 |
| Flute Helix Angle (FHA) | 30 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
| Shank Type | Round | Trade Name | SOLID MASTER |
| End Shape | Corner Radius |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.2
