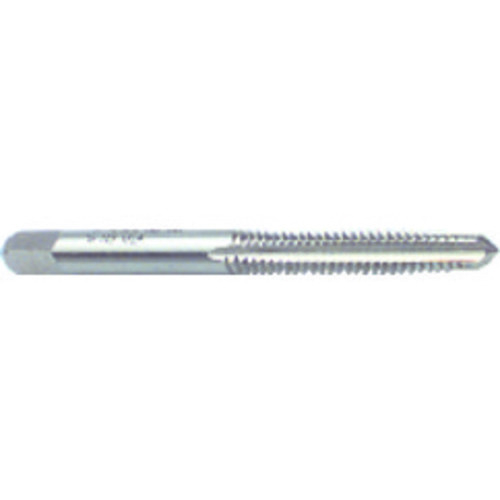

2046 3/4-16 TAPER H3 4FL
Straight Flute Tap; 3/4″ - 16 ; 4-1/4″ OAL ; 4 FL ; HSS ; Uncoated ; H3 ; Series 2046
| Thread Diameter Size (TDZ) | 3/4″ | Tool Type | General Purpose Tap |
| Threads per Inch (TPI) | 16 | Chamfer | Taper |
| Thread Standard | NF | Coating | Uncoated |
| Overall Length (OAL) | 4-1/4″ | Drive Size (DRVS) | 0.442″ |
| Thread Cutting Part Length (THL) | 2″ | Flute Type | Straight |
| Usable Length (LU) | 2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.59″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 2046 |
| Thread Tolerance Class (TCTR) | H3 | Thread Size | 3/4″ - 16 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.33
