2068 4-40 BOT H2 2FL BRT

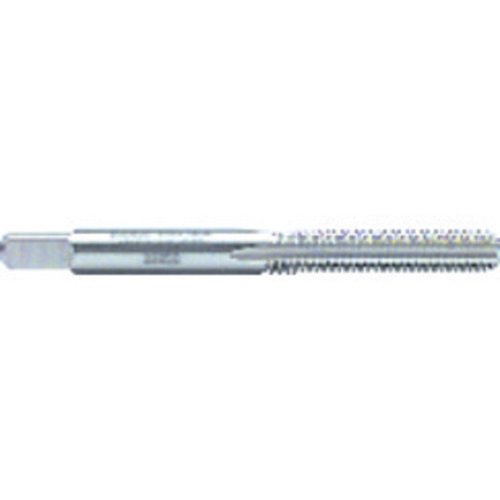

Straight Flute Tap; #4 - 40 ; 1-7/8″ OAL ; 2 FL ; HSS ; Uncoated ; H2 ; Series 2068
| Thread Diameter Size (TDZ) | #4 | Tool Type | General Purpose Tap |
| Threads per Inch (TPI) | 40 | Chamfer | Bottom |
| Thread Standard | NC | Coating | Uncoated |
| Overall Length (OAL) | 1-7/8″ | Drive Size (DRVS) | 0.11″ |
| Thread Cutting Part Length (THL) | 9/16″ | Flute Type | Straight |
| Usable Length (LU) | 9/16″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Measurement Type | Machine Screw |
| Cutting Edge Material | HSS | Series/List # | 2068 |
| Thread Tolerance Class (TCTR) | H2 | Thread Size | #4 - 40 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.02
