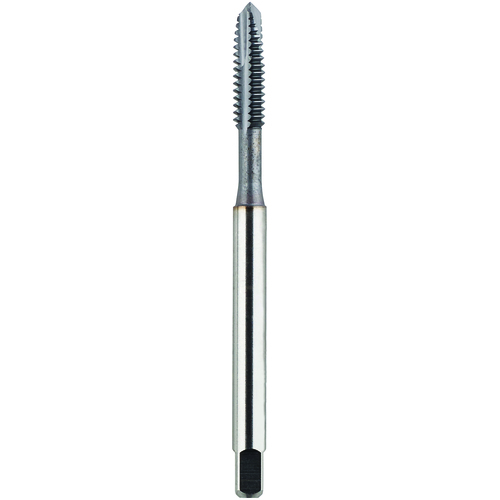

2157 M10X1.5 D6 TIALN
Spiral Point Tap; M10 × 1.5 mm ; 100 mm OAL ; 3 FL ; HSSE ; TIALN ; D6 ; Series 2157
| Thread Standard | NC | Cutting Edge Material | HSSE |
| Thread Size | M10 × 1.5 | Tool Type | DIN 371 |
| Thread Diameter Size (TDZ) | M10 | Applicable Material | | Cast Iron | |
| Thread Pitch (TP) | 1.5 mm | Connection Diameter Machine Side (DCONMS) | 10 mm |
| Thread Tolerance Class (TCTR) | D6 | Thread Cutting Part Length (THL) | 20 mm |
| Usable Length (LU) | 59 mm | Drive Size (DRVS) | 8 mm |
| Overall Length (OAL) | 100 mm | Cutting Direction (HAND) | Right Hand |
| Chamfer | Plug | Coolant Supply Property (CSP) | External |
| Coating | TIALN | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Series/List # | 2157 |
Product Features
| Country of Origin | Hungary |
Shipping Info
Package Weight
0.059
