2160 M10X1.25 D9 FORM TIN

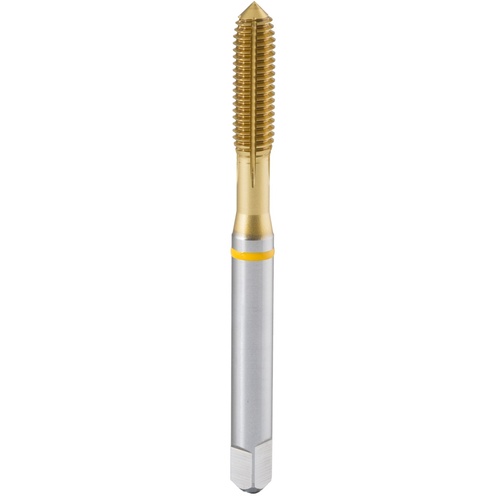

Forming Tap; M10 × 1.25 mm ; 90 mm OAL × 18 mm LU × 7 mm Shank Dia. ; HSSE ; TiN ; D9 ; Series 2160
| Tool Type | DIN 374 | Drive Size (DRVS) | 5.5 mm |
| Thread Diameter Size (TDZ) | M10 | Thread Tolerance Class (TCTR) | D9 |
| Thread Pitch (TP) | 1.25 mm | Applicable Material | | Universal Materials | |
| Overall Length (OAL) | 90 mm | Coating | TiN |
| Thread Cutting Part Length (THL) | 18 mm | Cutting Edge Material | HSSE |
| Usable Length (LU) | 18 mm | Series/List # | 2160 |
| Connection Diameter Machine Side (DCONMS) | 7 mm | Thread Size | M10 × 1.25 |
| Flute Count (NOF) | 5 |
Product Features
| Country of Origin | Hungary |
