2156 M12X1.75 D6 TICN

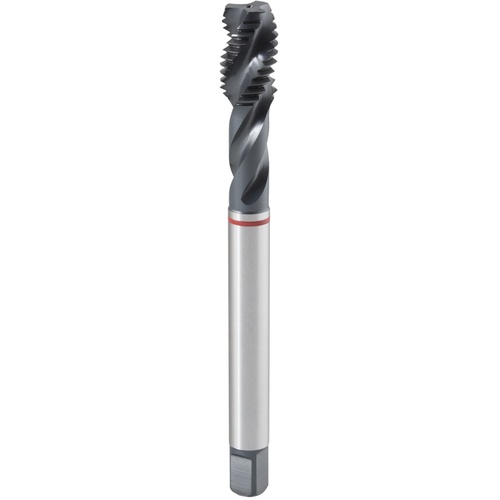

Spiral Flute Tap; M12 × 1.75 mm ; 110 mm OAL ; 3 FL ; HSSE ; TiCN ; D6 ; Series 2156
| Thread Diameter Size (TDZ) | M12 | Cutting Edge Material | HSSE |
| Thread Pitch (TP) | 1.75 mm | Thread Tolerance Class (TCTR) | D6 |
| Overall Length (OAL) | 110 mm | Chamfer | Semi-Bottoming |
| Thread Cutting Part Length (THL) | 18 mm | Coating | TiCN |
| Usable Length (LU) | 18 mm | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 9 mm | ToolTypeName | DIN 376 |
| Flute Count (NOF) | 3 | Series/List # | 2156 |
| Applicable Material | | Hard Materials | | Drive Size (DRVS) | 7 mm |
Product Features
| Country of Origin | Hungary |
Shipping Info
Package Weight
0.686
