2155 M20X2.5 D7 OXIDE

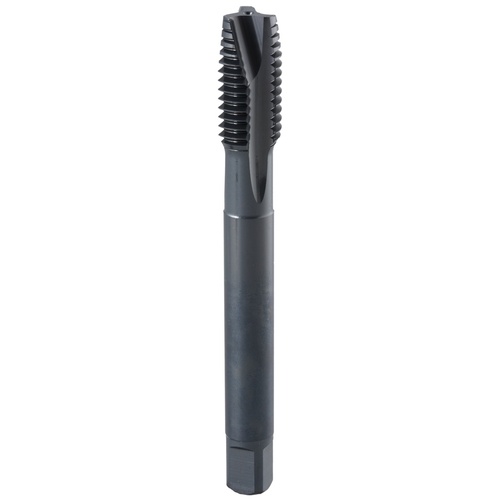

Spiral Point Tap; M20 × 2.5 mm ; 140 mm OAL ; 4 FL ; Powder Metal ; steamtemp. ; D7 ; Series 2155
| Thread Standard | NC | Cutting Edge Material | Powder Metal |
| Thread Size | M20 × 2.5 | Tool Type | DIN 376 |
| Thread Diameter Size (TDZ) | M20 | Applicable Material | | Stainless Steel | |
| Thread Pitch (TP) | 2.5 mm | Connection Diameter Machine Side (DCONMS) | 16 mm |
| Thread Tolerance Class (TCTR) | D7 | Thread Cutting Part Length (THL) | 30 mm |
| Usable Length (LU) | 30 mm | Drive Size (DRVS) | 12 mm |
| Overall Length (OAL) | 140 mm | Cutting Direction (HAND) | Right Hand |
| Chamfer | Plug | Coolant Supply Property (CSP) | External |
| Coating | steamtemp. | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Series/List # | 2155 |
Product Features
| Country of Origin | Hungary |
