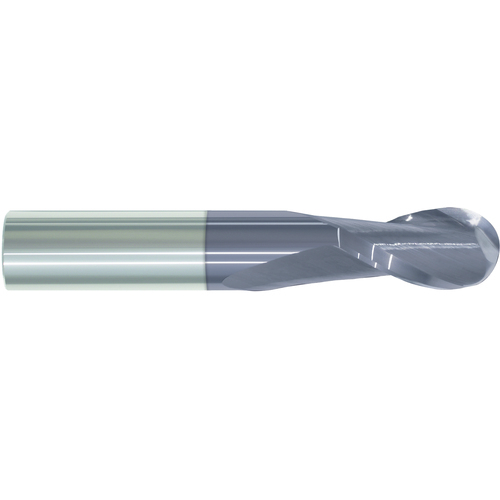

5/16″ Dia. × 5/16″ Shank × 1-5/8″ DOC × 4″ OAL, Carbide AlTiN, 2 Flute, Ballnose End Mill Series/List #5952T
BN End Mill; 5/16″ Dia. × 1-5/8″ LOC × 5/16″ Shank Dia. × 4″ OAL ; 2 FL ; Carbide ; AlTiN ; Series 5940T
| Cutting Diameter (DC) | 5/16″ | Tool Type | Single End |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Length Group | Long |
| Depth of Cut Maximum (APMX) | 1-5/8″ | End Shape | Ball Nose |
| Overall Length (OAL) | 4″ | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Style | Finishing |
| Coating | AlTiN | Decimal Equivalent | 0.3125″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 5940T |
| Usable Length (LU) | 1-5/8″ | Center Cutting | Yes |
| Applicable Material | | Carbide | |
Product Features
| Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Length
4.00000
Package Width
.37500
Package Height
.37500
Package Weight
0.136
