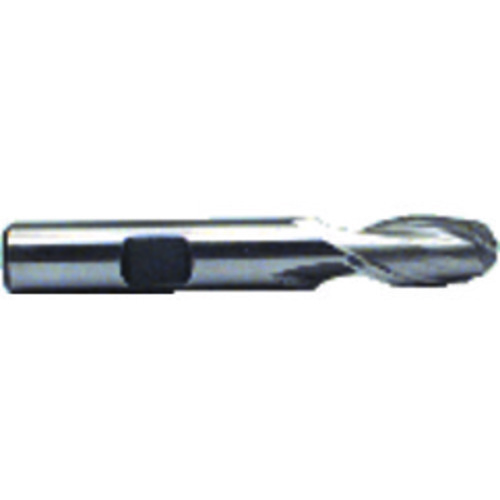

1-1/2″ Dia. × 1-1/4″ Shank × 2-1/2″ DOC × 5″ OAL, HSSCo Uncoated, 2 Flute, Round, External , Ballnose End Mill Series/List #4583
BN End Mill; 1-1/2″ Dia. × 2-1/2″ LOC × 1-1/4″ Shank Dia. × 5″ OAL ; 2 FL ; HSSCo ; Uncoated ; Series 4583
| Cutting Diameter (DC) | 1-1/2″ | Corner Radius (RE) | 3/4″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Tool Type | Single End |
| Depth of Cut Maximum (APMX) | 2-1/2″ | Length Group | Regular |
| Overall Length (OAL) | 5″ | End Shape | Ball Nose |
| Cutting Edge Material | HSSCo | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Style | Finishing |
| Flute Count (NOF) | 2 | Decimal Equivalent | 1.5″ |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 2-1/2″ | Series/List # | 4583 |
| Applicable Material | | Super-Alloys / Titanium | | Center Cutting | Yes |
Product Features
| Remarks | •M-42 Cobalt 2-Flute, Ball End •Single End Mills • Center Cutting •M–42 8% Cobalt Steel for the tougher cutting assignments on high-strength, high-temperature steels and exotic materials or extended production runs. | Country of Origin | S.Korea |
Shipping Info
Package Length
7.00000
Package Width
2.00000
Package Height
2.00000
Package Weight
1.522
