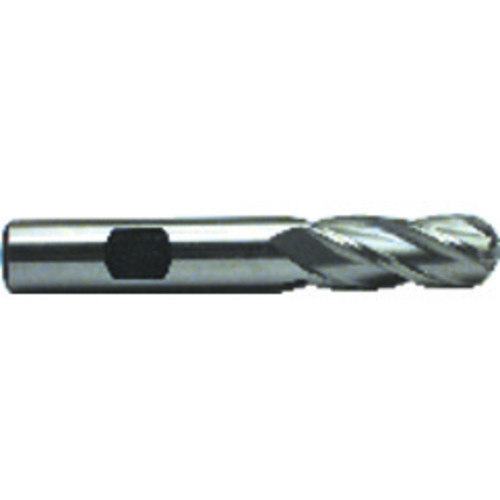

1/4″ Dia. × 3/8″ Shank × 5/8″ DOC × 2-9/16″ OAL, HSSCo Uncoated, 4 Flute, Ballnose End Mill Series/List #4589
| Cutting Diameter (DC) | 1/4″ | Corner Radius (RE) | 1/8″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Tool Type | Single End |
| Depth of Cut Maximum (APMX) | 5/8″ | Length Group | Regular |
| Overall Length (OAL) | 2-9/16″ | End Shape | Ball Nose |
| Cutting Edge Material | HSSCo | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Style | Finishing |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.25″ |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 5/8″ | Series/List # | 4589 |
| Applicable Material | | Super-Alloys / Titanium | | Center Cutting | Yes |
Product Features
| Remarks | •M-42 Cobalt Ball End Multi Flute •Single End Mills • Center Cutting | Country of Origin | USA |
Shipping Info
Package Length
3.10000
Package Width
.50000
Package Height
.50000
Package Weight
0.07
