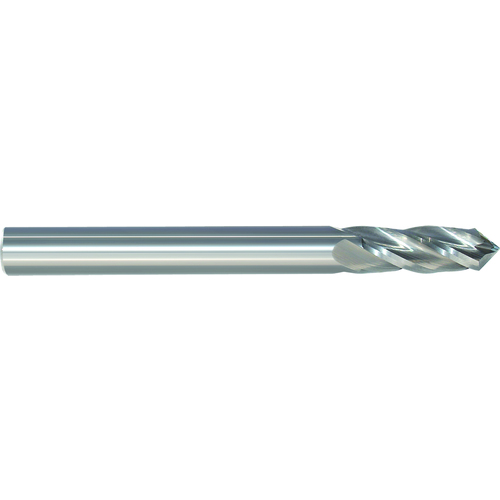

5989 DRL-MILL 3/32 4F 60D
Chamfer Mill; 3/32″ Dia. × 3/8″ LU × 3/8″ LOC × 1-1/2″ OAL × 1/8″ Shank Dia. ; 4 FL ; 60 Degrees ; Carbide ; Uncoated ; Series 5989
| Cutting Diameter (DC) | 3/32″ | Point Angle (SIG) | 60 Degrees |
| Decimal Equivalent | 0.0938″ | Cutting Edge Material | Carbide |
| Usable Length (LU) | 3/8″ | Coating | Uncoated |
| Flute Count (NOF) | 4 | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 3/8″ | Style | Drill/Mill |
| Overall Length (OAL) | 1-1/2″ | Tool Type | Single End |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Series/List # | 5989 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.016
