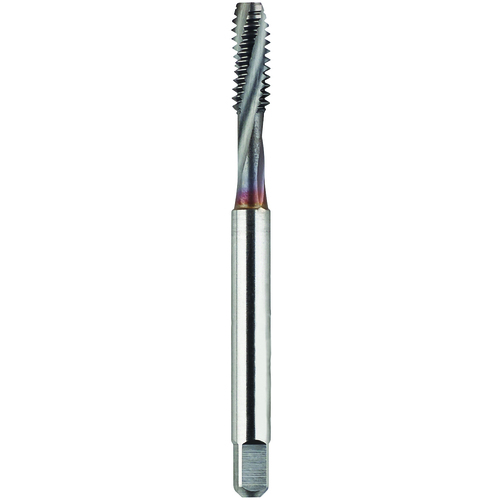

3/8″ - 16 NC 3-Flute, H3 Series/List # 2098C Spiral Flute Tap
Spiral Flute Tap; 3/8″ - 16 ; 2-15/16″ OAL ; 3 FL ; HSS-PM ; TiCN ; H3 ; Series 2098C
| Thread Diameter Size (TDZ) | 3/8″ | Cutting Edge Material | HSS-PM |
| Threads per Inch (TPI) | 16 | Thread Tolerance Class (TCTR) | H3 |
| Thread Standard | NC | Tool Type | High Performance Tap |
| Overall Length (OAL) | 2-15/16″ | Chamfer | Semi-Bottoming |
| Thread Cutting Part Length (THL) | 0.5469″ | Coating | TiCN |
| Usable Length (LU) | 1-1/4″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.381″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 17 Degrees | Series/List # | 2098 |
| Applicable Material | | Hard Materials | |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
4.00000
Package Width
.37500
Package Height
.37500
Package Weight
0.09
