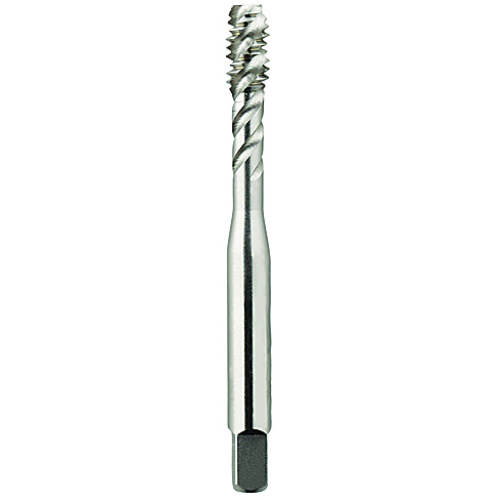

‎2102 ONYX 6-32 H3 BRT

‎Spiral Flute Tap; #6 - 32 ; 2″ OAL ; 3 FL ; HSS ; Uncoated ; H3 ; Series 2102

Item # 30872

Brand: Morse Cutting Tools

MFG #: 30872

Legacy Part #: MT7930872

UPC #: 01039957 | 686125308728

Trade Name: ONYX TAP

Quantity Available

Thread Diameter Size (TDZ)

Thread Tolerance Class (TCTR)

Threads per Inch (TPI)

Chamfer

Semi-Bottoming

Thread Standard

Coating

Uncoated

Overall Length (OAL)

2″

Cutting Direction (HAND)

Right Hand

Thread Cutting Part Length (THL)

0.236″

Coolant Supply Property (CSP)

External

Usable Length (LU)

0.688″

Measurement Type

Machine Screw

Connection Diameter Machine Side (DCONMS)

0.141″

Series/List #

2102

Flute Count (NOF)

Drive Size (DRVS)

0.11″

Flute Helix Angle (FHA)

48 Degrees

Thread Size

‎#6 - 32

Cutting Edge Material

HSS

Product Features

Remarks

• ONYX TAP - for tapping a wide range of materials up to 28Rc hardness.• CNC Style enchances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap and the workpiece.• Semi-Bottoming Style are designed to lift the chips sout of the hole in blind hole tapping, eliminating chip evacuation problems which can result in damaged threads and broken taps. They will also bridge opeings, keyways and other interruptions in the tapped hole.• Bright Finish for tapping a wide range of materials including Non-Ferrous materials. Tool coatings can be added for enchanced performance & tool life.

Country of Origin

USA

Shipping Info

Package Length

2.00000

Package Width

.10000

Package Height

.10000

Package Weight

0.02
