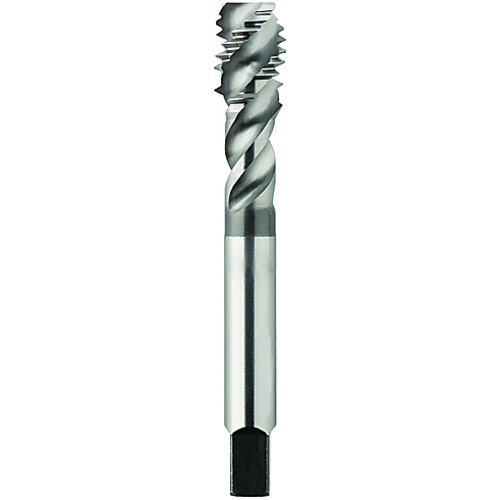

7/16″ - 14 NC 3-Flute, H3 Modified Bottoming Series/List # 2093S Spiral Flute Tap
Spiral Flute Tap; 7/16″ - 14 ; 3-5/32″ OAL ; 3 FL ; HSS-PM ; CrN ; H3 ; Series 2093
| Thread Diameter Size (TDZ) | 7/16″ | Special Feature | High Performance |
| Threads per Inch (TPI) | 14 | Tool Type | High Performance Tap |
| Thread Standard | NC | Chamfer | Semi-Bottoming |
| Overall Length (OAL) | 3-5/32″ | Coating | CrN |
| Thread Cutting Part Length (THL) | 19/32″ | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 1.4276″ | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 0.323″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | ToolTypeName | Spiral Flute Taps |
| Flute Helix Angle (FHA) | 48 Degrees | Series/List # | 2093 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Drive Size (DRVS) | 0.242″ |
| Cutting Edge Material | HSS-PM | Thread Size | 7/16″ - 14 |
| Thread Tolerance Class (TCTR) | H3 |
Product Features
| Remarks | • |
Country of Origin | USA |
Shipping Info
Package Length
4.00000
Package Width
.50000
Package Height
.50000
Package Weight
0.1
