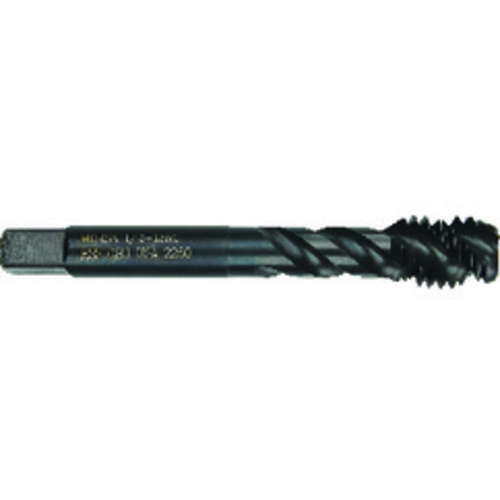

‎#4 - 40 NC 3-Flute, H2 Semi-Bottoming Series/List # 2091 Spiral Flute Tap

Item # 34450

UNSPSC: 23241615

Brand: Morse Cutting Tools

MFG#: 34450

UPC #: 686125344504

Quantity Available

Thread Diameter Size (TDZ)

Special Feature

ShearTap

Threads per Inch (TPI)

Tool Type

Production Tap

Thread Standard

Chamfer

Semi-Bottoming

Overall Length (OAL)

‎1-7/8″

Coating

Black Oxide

Thread Cutting Part Length (THL)

0.236″

Flute Type

Spiral

Flute Count (NOF)

Style

Semi-Bottoming

Flute Helix Angle (FHA)

48 Degrees

Measurement Type

Machine Screw

Applicable Material

| Steel | Stainless Steel |

ToolTypeName

Spiral Flute Taps

Cutting Edge Material

HSS

Series/List #

2091

Thread Tolerance Class (TCTR)

Product Features

Remarks

ShearTapô• ShearTapô for Stainless Steel & Carbon Steel up to 35Rc hardness.• CNC Style enchances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap and the workpiece.• Semi-Bottoming Style are designed to lift the chips sout of the hole in blind hole tapping, eliminating chip evacuation problems which can result in damaged threads and broken taps. They will also bridge opeings, keyways and other interruptions in the tapped hole.• Steam Oxide over Nitride increases wear resistance, reduces friction, reduces galling and chip welding, improves chip flow and increases tap lubricant retention.

Country of Origin

United States

Shipping Info

Package Length

3.00000

Package Width

.50000

Package Height

.40000

Package Weight

0.02
