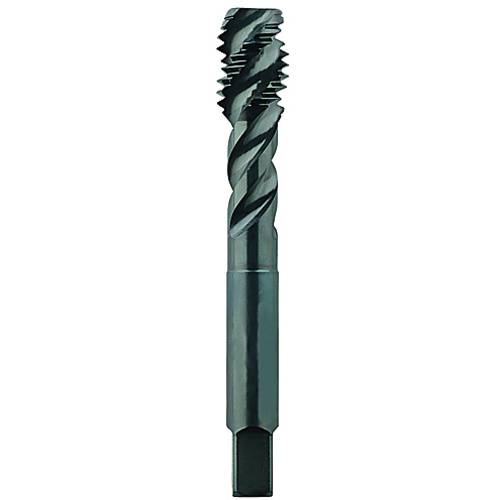

‎2091 SHEARTAP 3/4-10 H3

‎Spiral Flute Tap; 3/4″ - 10 ; 4-1/4″ OAL ; 4 FL ; HSS ; Steam Oxide over Nitride ; H3 ; Series 2091

Item # 34492

Brand: Morse Cutting Tools

MFG #: 34492

Legacy Part #: MT3534492

UPC #: 01029562 | 68612534492 | 686125344924

Trade Name: SHEAR TAP

Quantity Available

Thread Diameter Size (TDZ)

3/4″

Thread Tolerance Class (TCTR)

Threads per Inch (TPI)

Special Feature

ShearTap

Thread Standard

Chamfer

Semi-Bottoming

Overall Length (OAL)

‎4-1/4″

Coating

Steam Oxide over Nitride

Thread Cutting Part Length (THL)

13/16″

Cutting Direction (HAND)

Right Hand

Usable Length (LU)

1.985″

Coolant Supply Property (CSP)

External

Connection Diameter Machine Side (DCONMS)

0.59″

Measurement Type

Inch

Flute Count (NOF)

ToolTypeName

Spiral Flute Taps

Flute Helix Angle (FHA)

48 Degrees

Series/List #

2091

Applicable Material

| Steel | Stainless Steel |

Drive Size (DRVS)

0.442″

Cutting Edge Material

HSS

Thread Size

‎3/4″ - 10

Product Features

Remarks

ShearTapô• ShearTapô for Stainless Steel & Carbon Steel up to 35Rc hardness.• CNC Style enchances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap and the workpiece.• Semi-Bottoming Style are designed to lift the chips sout of the hole in blind hole tapping, eliminating chip evacuation problems which can result in damaged threads and broken taps. They will also bridge opeings, keyways and other interruptions in the tapped hole.• Steam Oxide over Nitride increases wear resistance, reduces friction, reduces galling and chip welding, improves chip flow and increases tap lubricant retention.

Country of Origin

USA

Shipping Info

Package Length

4.40000

Package Width

.90000

Package Height

.90000

Package Weight

0.3
