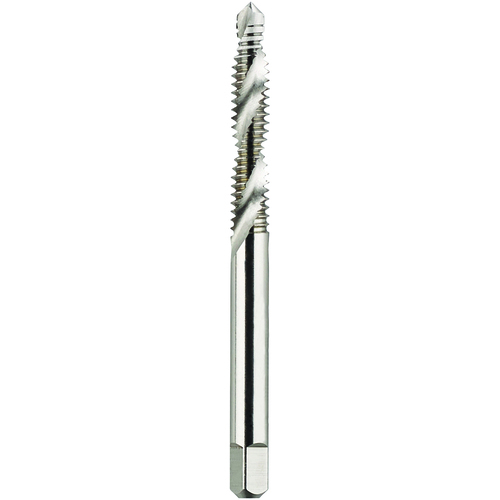

M3.5 Metric 2-Flute, D4 Plug Series/List # 2039 Spiral Flute Tap
Spiral Flute Tap; M3.5 × 0.6 mm ; 2″ OAL ; 2 FL ; HSS ; Uncoated ; D4 ; Series 2039
| Thread Diameter Size (TDZ) | M3.5 | Flute Helix Angle (FHA) | 30 Degrees |
| Thread Pitch (TP) | 0.6 mm | Cutting Edge Material | HSS |
| Thread Standard | NC | Thread Tolerance Class (TCTR) | D4 |
| Overall Length (OAL) | 2″ | Chamfer | Plug |
| Thread Cutting Part Length (THL) | 0.2344″ | Coating | Uncoated |
| Usable Length (LU) | 11/16″ | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Series/List # | 2063 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.02
