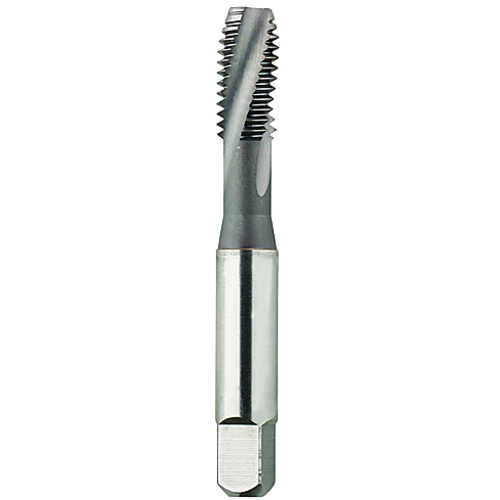

M10 3-Flute, D6 Series/List # 2098MC Spiral Flute Tap

‎Spiral Flute Tap; M10 × 1.5 mm ; 2-15/16″ OAL ; 3 FL ; HSS-PM ; TiCN ; D6 ; Series 2098MC

Item # 61146

Brand: Morse Cutting Tools

MFG #: 61146

Legacy Part #: MT3361146

UPC #: 01029461 | 68612561146 | 686125611460

Trade Name: SINGLE TAP

Quantity Available

Thread Diameter Size (TDZ)

M10

Cutting Edge Material

HSS-PM

Thread Pitch (TP)

1.5 mm

Thread Tolerance Class (TCTR)

Thread Standard

Chamfer

Semi-Bottoming

Overall Length (OAL)

‎2-15/16″

Coating

TiCN

Thread Cutting Part Length (THL)

35/64″

Cutting Direction (HAND)

Right Hand

Usable Length (LU)

‎1-1/4″

Coolant Supply Property (CSP)

External

Connection Diameter Machine Side (DCONMS)

0.381″

Measurement Type

Metric

Flute Count (NOF)

Series/List #

2098

Flute Helix Angle (FHA)

17 Degrees

Drive Size (DRVS)

0.286″

Applicable Material

Thread Size

M10 × 1.5 mm

Product Features

Remarks

‎• HPT†- High Performance Tap†- Hard Materials• Recommended for harder 32Rc-45Rc materials including steel alloys, titanium alloys, nickel base high temp alloys, tool and mold steels and stainless steels.• Spiral Flute Taps are designed to lift the chips out of the hole in blind hole tapping, eliminating chip evacuation problems which can result in damaged threads and broken taps. They will also bridge openings, keyways and other interruptions in the tapped hole.• Semi-Bottoming Style (2-3 thread chamfer) allows threading close to the bottom of blind holes but cuts more efficiently than standard bottoming taps due to a slightly longer chamfer which distributes the cutting load over greater number of teeth.• CNC Reduced Neck Design enhances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap the work piece.• P/M Powder Metallurgy High Speed SteelPremium Steel Engineered For: Hardness / Wear Resistance / Tool Life / Heat Resistance / Toughness and Strength / Performance under Difficult Cutting Conditions / Higher Cutting Speeds / Increased Productivity

Country of Origin

USA

Shipping Info

Package Length

3.50000

Package Width

.40000

Package Height

.50000

Package Weight

0.09
