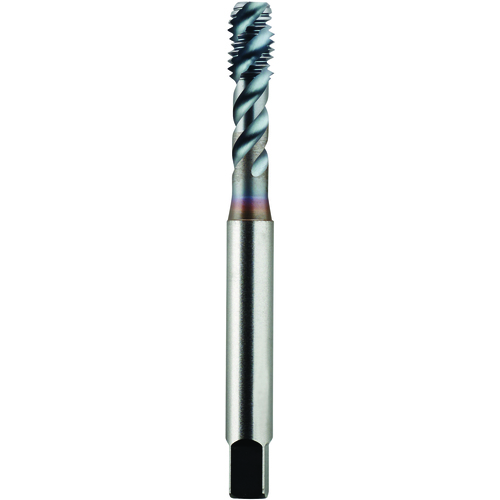

M8 3-Flute, D5 Series/List # 2089MC Spiral Flute Tap
Spiral Flute Tap; M8 × 1.25 mm ; 90 mm OAL ; 3 FL ; HSS-PM ; TiCN ; D5 ; Series 2089
| Thread Diameter Size (TDZ) | M8 | Thread Tolerance Class (TCTR) | D5 |
| Thread Pitch (TP) | 1.25 mm | Standard | DIN | ANSI |
| Thread Standard | NC | Chamfer | Semi-Bottoming |
| Overall Length (OAL) | 90 mm | Coating | TiCN |
| Thread Cutting Part Length (THL) | 12 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 35 mm | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Series/List # | 2089 |
| Flute Helix Angle (FHA) | 48 Degrees | Drive Size (DRVS) | 0.238″ |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Thread Size | M8 × 1.25 mm |
| Cutting Edge Material | HSS-PM |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
4.12000
Package Width
.62500
Package Height
.62500
Package Weight
0.1
