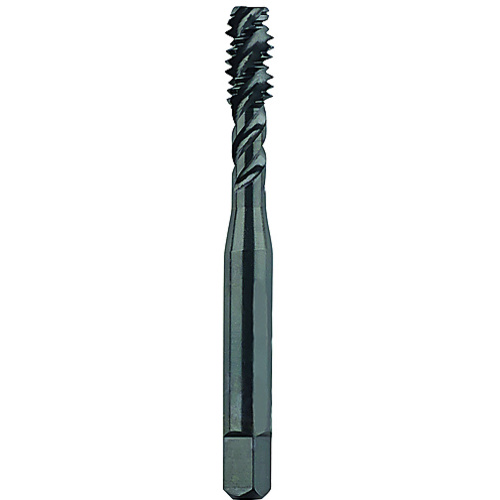

‎2091 SHEARTAP 10-24 H2

‎Spiral Flute Tap; #10 - 24 ; 2-3/8″ OAL ; 3 FL ; HSS ; Steam Oxide over Nitride ; H2 ; Series 2091

Item # 34459

Brand: Morse Cutting Tools

MFG #: 34459

Legacy Part #: MT3534459

UPC #: 01029533 | 68612534459 | 686125344597

Trade Name: SHEAR TAP

Quantity Available

Thread Diameter Size (TDZ)

#10

Thread Tolerance Class (TCTR)

Threads per Inch (TPI)

Special Feature

ShearTap

Thread Standard

Chamfer

Semi-Bottoming

Overall Length (OAL)

‎2-3/8″

Coating

Steam Oxide over Nitride

Thread Cutting Part Length (THL)

0.354″

Cutting Direction (HAND)

Right Hand

Usable Length (LU)

7/8″

Coolant Supply Property (CSP)

External

Connection Diameter Machine Side (DCONMS)

0.194″

Measurement Type

Machine Screw

Flute Count (NOF)

Series/List #

2091

Flute Helix Angle (FHA)

48 Degrees

Drive Size (DRVS)

0.152″

Applicable Material

| Steel | Stainless Steel |

Thread Size

‎#10 - 24

Cutting Edge Material

HSS

Product Features

Remarks

ShearTapô• ShearTapô for Stainless Steel & Carbon Steel up to 35Rc hardness.• CNC Style enchances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap and the workpiece.• Semi-Bottoming Style are designed to lift the chips sout of the hole in blind hole tapping, eliminating chip evacuation problems which can result in damaged threads and broken taps. They will also bridge opeings, keyways and other interruptions in the tapped hole.• Steam Oxide over Nitride increases wear resistance, reduces friction, reduces galling and chip welding, improves chip flow and increases tap lubricant retention.

Country of Origin

USA

Shipping Info

Package Length

3.00000

Package Width

.25000

Package Height

.25000

Package Weight

0.03
