7501G M8 × 1.25 S/P D5

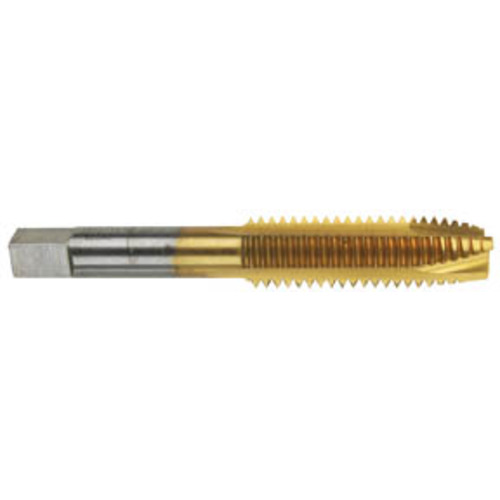

Spiral Point Tap; M8 × 1.25 mm ; 2-23/32″ OAL ; 2 FL ; HSS ; TiN ; D5 ; Series 7501G
| Thread Standard | NC | Flute Count (NOF) | 2 |
| Thread Size | M8 × 1.25 | Cutting Edge Material | HSS |
| Thread Diameter Size (TDZ) | M8 | Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Thread Pitch (TP) | 1.25 mm | Thread Cutting Part Length (THL) | 1-1/8″ |
| Thread Tolerance Class (TCTR) | D5 | Flute Type | Straight |
| Usable Length (LU) | 1-1/8″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 2-23/32″ | Coolant Supply Property (CSP) | External |
| Chamfer | Plug | Measurement Type | Metric |
| Coating | TiN | Series/List # | 7501G |
Product Features
| Remarks | •Spiral Point taps are designed for machine tapping in through holes in a wide variety of materials.&NewLine•The point ejects the chips ahead of the tap, eliminating chip disposal problems and greater tap core strength allowing for higher cut ting speeds. •Titanium Nitride (TiN) Coating results in an extremely hard surface with high lubricity for increased tool life, improved thread quality, reduced torque and increased tapping speeds for greater productivity. | Country of Origin | USA |
Shipping Info
Package Length
3.77000
Package Width
.56000
Package Height
.54000
Package Weight
0.065
