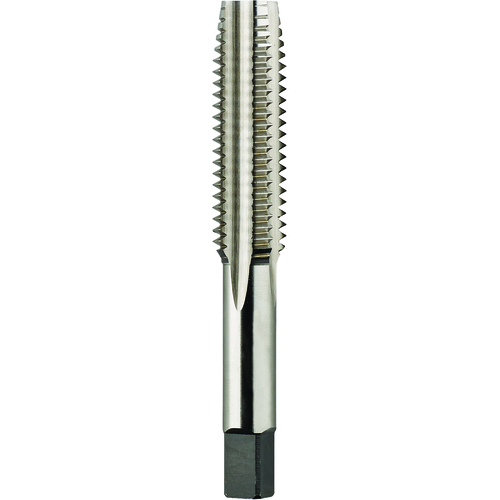

2046 2-1/4″-12 PLUG H6
Straight Flute Tap; 2-1/4″ - 12 ; 5-1/4″ OAL ; 6 FL ; HSS ; Uncoated ; H6 ; Series 2046
| Thread Diameter Size (TDZ) | 2-1/4″ | Tool Type | General Purpose Tap |
| Threads per Inch (TPI) | 12 | Chamfer | Plug |
| Thread Standard | NS | Coating | Uncoated |
| Overall Length (OAL) | 5-1/4″ | Drive Size (DRVS) | 1.42″ |
| Thread Cutting Part Length (THL) | 2″ | Flute Type | Straight |
| Usable Length (LU) | 2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1.894″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 6 | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 2046 |
| Thread Tolerance Class (TCTR) | H6 | Thread Size | 2-1/4″ - 12 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
5.2
