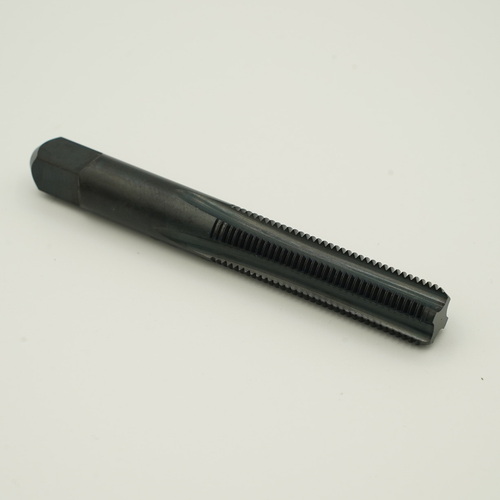

3/8″ NF, 24 TPI, 4 -Flute, H3 Bottoming Straight Flute Tap
Straight Flute Tap; 3/8″ -24 × 2-15/16″ OAL ; 4 FL ; HSS ; | Black Oxide | ; | NF | ; | H3 | ; Series 2046X
| Thread Diameter Size (TDZ) | 3/8″ | Tool Type | General Purpose Tap |
| Threads per Inch (TPI) | 24 | Chamfer | 1 to 2 Threads |
| Thread Standard | NF | Coating | Steam Oxide |
| Overall Length (OAL) | 2-15/16″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-1/4″ | Style | Bottoming |
| Flute Count (NOF) | 4 | Measurement Type | Fractional |
| Cutting Edge Material | HSS | Series/List # | 2046X |
| Thread Tolerance Class (TCTR) | H3 | Thread Size | 3/8″ - 24 |
Product Features
| Remarks | • |
Country of Origin | USA |
Shipping Info
Package Length
4.00000
Package Width
.37500
Package Height
.37500
Package Weight
0.04
