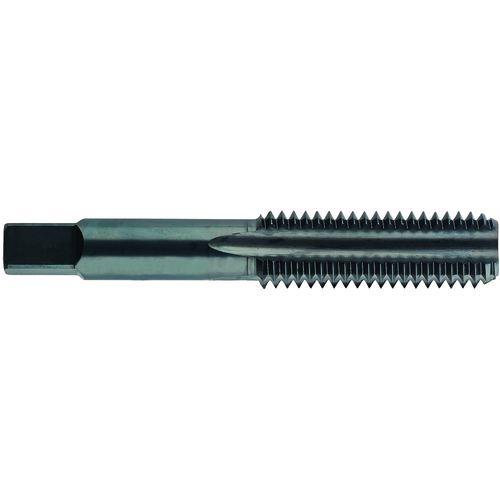

5/8″ NC, 11 TPI, 4 -Flute, H0 Plug Straight Flute Tap Series/List #2146
Straight Flute Tap; 5/8″ - 11 ; 3-13/16″ OAL ; 4 FL ; HSS ; Steam Oxide ; H0 ; Series 2146
| Thread Diameter Size (TDZ) | 5/8″ | Tool Type | Clean Out Tap |
| Threads per Inch (TPI) | 11 | Chamfer | Plug |
| Thread Standard | NC | Coating | Steam Oxide |
| Overall Length (OAL) | 3-13/16″ | Drive Size (DRVS) | 0.36″ |
| Thread Cutting Part Length (THL) | 1-13/16″ | Flute Type | Straight |
| Usable Length (LU) | 1-13/16″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.48″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 2146 |
| Thread Tolerance Class (TCTR) | H0 | Thread Size | 5/8″ - 11 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
1.90000
Package Width
.20000
Package Height
.20000
Package Weight
0.2
