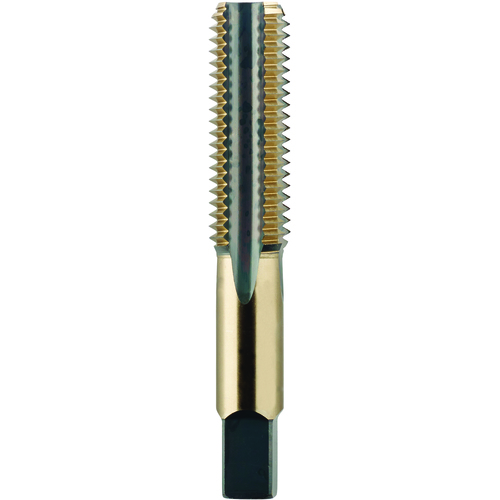

1″ NF, 12 TPI, 4 -Flute, H4 Bottoming Straight Flute Tap Series/List #114
Straight Flute Tap; 1″ - 12 ; 5-1/8″ OAL ; 4 FL ; HSS ; | Black Oxide | Gold Oxide | ; H4 ; Series 114
| Thread Diameter Size (TDZ) | 1″ | Tool Type | General Purpose Tap |
| Threads per Inch (TPI) | 12 | Chamfer | 1 to 2 threads |
| Thread Standard | NF | Coating | | Black Oxide | Gold Oxide | |
| Overall Length (OAL) | 5-1/8″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 2-1/2″ | Style | Bottoming |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 114 |
| Thread Tolerance Class (TCTR) | H4 | Thread Size | 1″ - 12 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
4.75000
Package Width
1.00000
Package Height
1.00000
Package Weight
0.64
