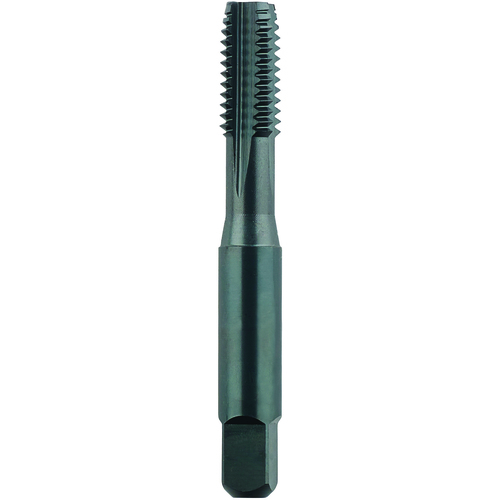

5/16″ NC, 18 TPI, 4 -Flute, Semi-Bottoming Straight Flute Tap Series/List #2094
Straight Flute Tap; 5/16″ - 18 ; 2-23/32″ OAL ; 4 FL ; HSSCo-PM ; Black Oxide ; Series 2094
| Thread Diameter Size (TDZ) | 5/16″ | Thread Tolerance Class (TCTR) | H5 |
| Threads per Inch (TPI) | 18 | Chamfer | Semi-Bottoming |
| Thread Standard | NC | Coating | Steam Oxide over Nitride |
| Overall Length (OAL) | 2-23/32″ | Drive Size (DRVS) | 0.238″ |
| Thread Cutting Part Length (THL) | 11/16″ | Flute Type | Straight |
| Usable Length (LU) | 1-1/8″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Applicable Material | | Cast Iron | | Series/List # | 2094 |
| Cutting Edge Material | HSS-PM | Thread Size | 5/16″ - 18 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
4.00000
Package Width
.37500
Package Height
.37500
Package Weight
0.07
