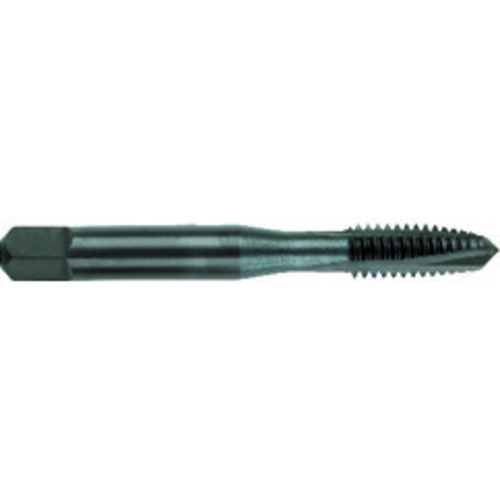

‎5/16-24 Dia. - H3 - 3 FL - Powder Metal - TiCN - Plug - Spiral Point Tap Series/List #2095C

Item # 60856

UNSPSC: 23241615

Brand: Morse Cutting Tools

MFG#: 60856

UPC #: 686125608569

Quantity Available

Thread Standard

Cutting Edge Material

HSS-PM

Thread Size

‎5/16″ - 24

Tool Type

High Performance Tap

Thread Diameter Size (TDZ)

5/16″

Applicable Material

| Super-Alloys / Titanium |

Threads per Inch (TPI)

Thread Cutting Part Length (THL)

11/16″

Thread Tolerance Class (TCTR)

Flute Type

Straight

Usable Length (LU)

11/16″

End Shape

Spiral Point

Overall Length (OAL)

‎2-23/32″

Style

Plug

Chamfer

Plug

Measurement Type

Inch

Coating

TiCN

Series/List #

2095C

Flute Count (NOF)

Product Features

Remarks

‎• HPT†- High Performance Tap - Exotic Alloys• Recommended for steels, steel alloys, stainless steels, titanium alloys, nickel and nickel base alloys, other exotic alloys and wide variety of materials up to 32Rc hardness.• Spiral†Point Taps are designed fo refficient tapping of through holes and blind holes with adequate depth for chip accumulation at the bottom of the hole. The shearing action of the point provides freer cutting action and ejects the chips ahead of the tap, eliminating chip evacuation problems and chip damage to the threads. Shallower flutes also result in greater tap strength, allowing for higher cutting speeds.• Plug†Style (3-5 thread chamfer) is the most common chamfer used for tapping applications in through holes and blind holes with sufficient bottom clearance.• CNC Reduced Neck Design enhances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap the work piece.• P/M Powder Metallurgy High Speed SteelPremium Steel Engineered For:† Hardness / Wear Resistance / Tool / Heat Resistance / Toughness and Strength / Performance under Difficult Cutting Conditions / Higher Cutting Speeds / Increased Productivity

Country of Origin

USA

Shipping Info

Package Length

2.80000

Package Width

.30000

Package Height

.30000

Package Weight

0.07
