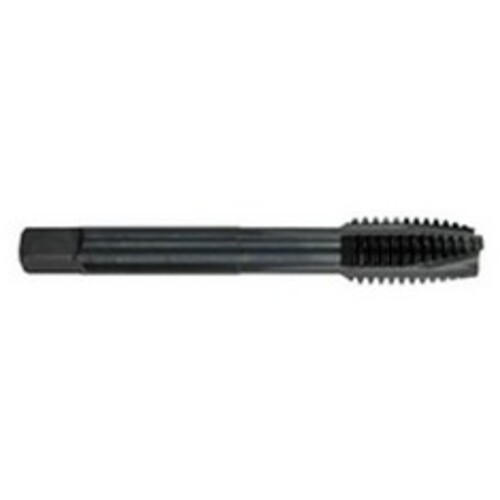

‎3/4-16 Dia. - H11 - HSS - Nitride & Steam Oxide - +.005 Oversize Spiral Point Tap Series/List #2090

Item # 34581

UNSPSC: 23241615

Brand: Morse Cutting Tools

MFG#: 34581

UPC #: 01029617

Quantity Available

Thread Standard

Tool Type

Production Tap

Thread Size

‎3/4″ - 16

Special Feature

ShearTap

Thread Diameter Size (TDZ)

3/4″

Applicable Material

| Steel | Stainless Steel |

Threads per Inch (TPI)

Thread Cutting Part Length (THL)

1.220″

Thread Tolerance Class (TCTR)

H11

Flute Type

Straight

Usable Length (LU)

1.220″

End Shape

Spiral Point

Overall Length (OAL)

‎4-1/4″

Style

Plug

Chamfer

3 to 5 Threads

Cutting Direction (HAND)

Right Hand

Coating

Black Oxide

Coolant Supply Property (CSP)

External

Flute Count (NOF)

Measurement Type

Inch

Cutting Edge Material

HSS

Series/List #

2090

Standard

Oversize

Product Features

Remarks

ShearTapô• ShearTapô - for Stainless Steel & Carbon Steel up to 35Rc hardness.• Oversize taps are mainly used for parts that will be plated or heat treated after tapping. Also used in materials that tend to shrink after tapping.• CNC Style enchances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap and the workpiece.• Spiral Point Taps are designed for efficient tapping of through holes and blind holes with adequate depth for chip accumulation at the bottom of the hole. The shearing action of the point provides freer cutting action and ejects the chips ahead of the tap, eliminating chip evacuation problems and chip damage to the threads. Shallower flutes also result in greater tap strength, allowing for higher cutting speeds.• Steam Oxide over Nitride increases wear resistance, reduces friction, reduces galling and chip welding, improves chip flow and increases tap lubricant retention.

Country of Origin

USA

Shipping Info

Package Length

4.40000

Package Width

.90000

Package Height

.90000

Package Weight

0.36
