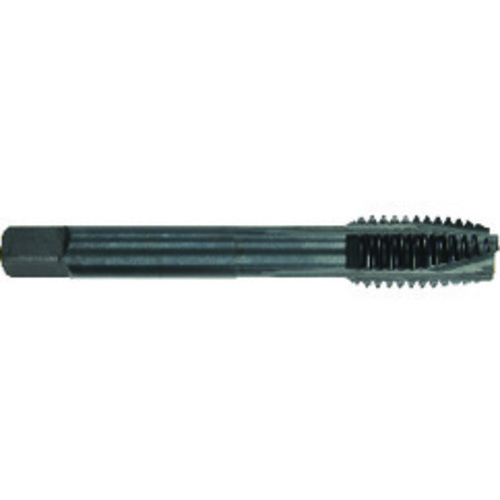

2090 SHEARTAP 1-3/8″-8
Spiral Point Tap; 1-3/8″ - 8 ; 6-1/16″ OAL ; 4 FL ; HSS ; Black Oxide ; H5 ; Series 2090
| Thread Standard | NC | Special Feature | ShearTap |
| Thread Size | 1-3/8″ - 8 | Applicable Material | | Steel | Stainless Steel | |
| Thread Diameter Size (TDZ) | 1-3/8″ | Connection Diameter Machine Side (DCONMS) | 1.108″ |
| Threads per Inch (TPI) | 8 | Thread Cutting Part Length (THL) | 2″ |
| Thread Tolerance Class (TCTR) | H5 | Flute Type | Straight |
| Usable Length (LU) | 3″ | End Shape | Spiral Point |
| Overall Length (OAL) | 6-1/16″ | Style | Plug |
| Chamfer | Plug | Cutting Direction (HAND) | Right Hand |
| Coating | Steam Oxide over Nitride | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 2090 |
| Tool Type | Production Tap |
Product Features
| Remarks | Country of Origin | USA |
Shipping Info
Package Length
7.87500
Package Width
1.37500
Package Height
1.37500
Package Weight
1.26
