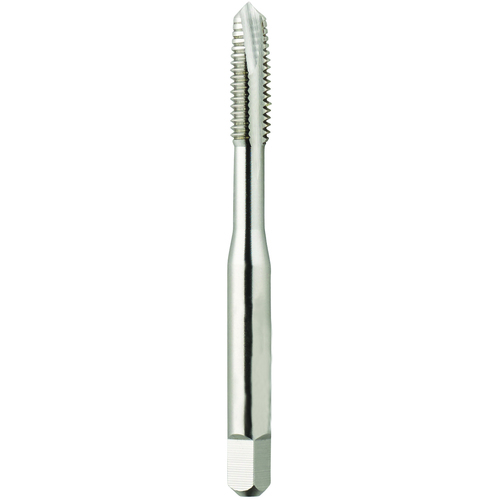

2101M ONYX M2.5 × 0.45 BR

‎Spiral Point Tap; M2.5 × 0.45 mm ; 1-15/16″ OAL ; 2 FL ; HSS ; Uncoated ; D3 ; Series 2101M

Item # 30911

Brand: Morse Cutting Tools

MFG #: 30911

Legacy Part #: MT7930911

UPC #: 01039994 | 686125309114

Trade Name: ONYX TAP

Quantity Available

Thread Standard

Cutting Edge Material

HSS

Thread Size

M2.5 × 0.45

Tool Type

General Purpose Tap

Thread Diameter Size (TDZ)

M2.5

Connection Diameter Machine Side (DCONMS)

0.141″

Thread Pitch (TP)

0.45 mm

Thread Cutting Part Length (THL)

0.313″

Thread Tolerance Class (TCTR)

Drive Size (DRVS)

0.11″

Usable Length (LU)

0.626″

Flute Type

Straight

Overall Length (OAL)

‎1-15/16″

Cutting Direction (HAND)

Right Hand

Chamfer

Plug

Coolant Supply Property (CSP)

External

Coating

Uncoated

Measurement Type

Metric

Flute Count (NOF)

Series/List #

2101M

Product Features

Remarks

? ONYX TAP - for tapping a wide range of materials up to 28Rc hardness.? CNC Style enchances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap and the workpiece.? Spiral Point Taps are designed for effcient tapping of through holes and blind holes with adequate depth for chip accumulation at the bottom of the hole. The shearing action of the point provides freer cutting action and ejects the chips ahead of the tap, eliminating chip evacuation problems and chip damage to the threads. Shallower flutes also result in greater tap strength, allowing for higher cutting speeds.? Bright Finish for tapping a wide range of materials including Non-Ferrous materials. Tool coatings can be added for enchanced performance & tool life.

Country of Origin

USA

Shipping Info

Package Length

1.80000

Package Width

.10000

Package Height

.10000

Package Weight

0.02
