116 3/8-16 S/P H3 3FL BRT

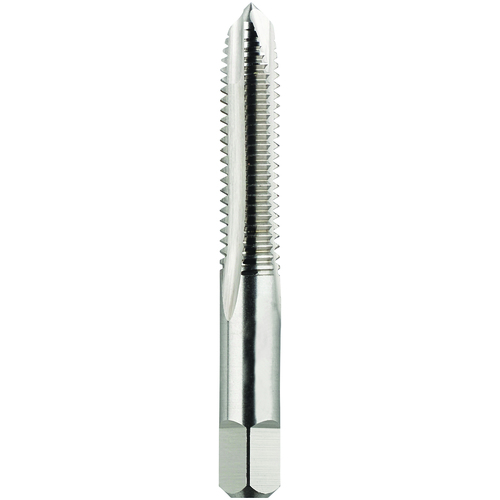

Spiral Point Tap; 3/8″ - 16 ; 2-15/16″ OAL ; 3 FL ; HSS ; Uncoated ; H3 ; Series 116
| Thread Standard | NC | Flute Count (NOF) | 3 |
| Thread Size | 3/8″ - 16 | Cutting Edge Material | HSS |
| Thread Diameter Size (TDZ) | 3/8″ | Tool Type | General Purpose Tap |
| Threads per Inch (TPI) | 16 | Thread Cutting Part Length (THL) | 1-1/4″ |
| Thread Tolerance Class (TCTR) | H3 | Flute Type | Straight |
| Usable Length (LU) | 1-1/4″ | End Shape | Spiral Point |
| Overall Length (OAL) | 2-15/16″ | Style | Plug |
| Chamfer | Plug | Measurement Type | Inch |
| Coating | Uncoated | Series/List # | 116 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
4.00000
Package Width
.37500
Package Height
.37500
Package Weight
0.085
