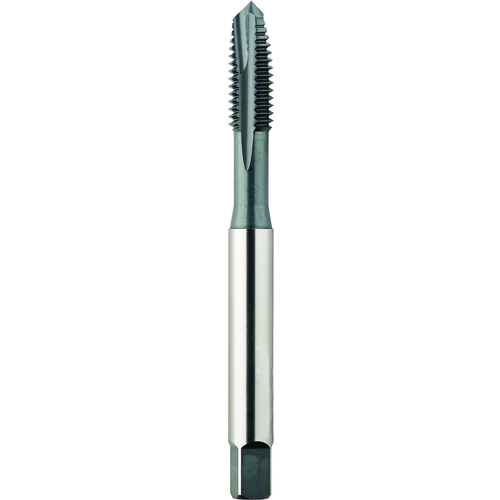

2088M HPT M6 × 1.00 S/P
Spiral Point Tap; M6 × 1 mm ; 80 mm OAL ; 3 FL ; HSS-PM ; Steam Oxide ; D5 ; Series 2088M
| Thread Standard | NC | Cutting Edge Material | HSS-PM |
| Thread Size | M6 × 1 | Tool Type | High Performance Tap |
| Thread Diameter Size (TDZ) | M6 | Applicable Material | | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 1 mm | Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Thread Tolerance Class (TCTR) | D5 | Thread Cutting Part Length (THL) | 0.6693″ |
| Usable Length (LU) | 1.1811″ | Style | Spiral Point |
| Overall Length (OAL) | 80 mm | Cutting Direction (HAND) | Right Hand |
| Chamfer | Plug | Coolant Supply Property (CSP) | External |
| Coating | Steam Oxide | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Series/List # | 2088M |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.87500
Package Width
.57500
Package Height
.57500
Package Weight
0.03
