2090G SHEARTAP 3/8-24 H3

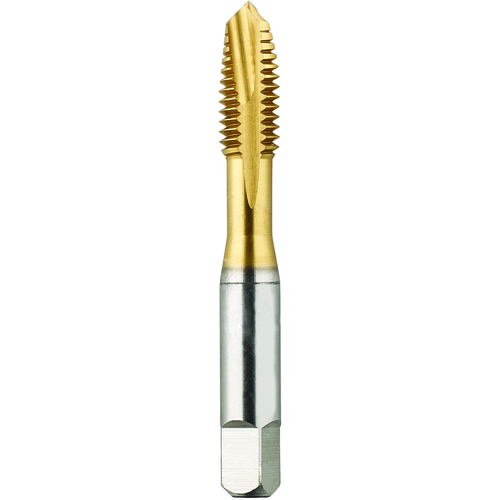

Spiral Point Tap; 3/8″ - 24 ; 2-15/16″ OAL ; 3 FL ; HSS ; TiN ; H3 ; Series 2090G
| Thread Standard | NF | Tool Type | Production Tap |
| Thread Size | 3/8″ - 24 | Special Feature | ShearTap |
| Thread Diameter Size (TDZ) | 3/8″ | Applicable Material | | Steel | Stainless Steel | |
| Threads per Inch (TPI) | 24 | Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Thread Tolerance Class (TCTR) | H3 | Thread Cutting Part Length (THL) | 3/4″ |
| Usable Length (LU) | 1-1/4″ | End Shape | Spiral Point |
| Overall Length (OAL) | 2-15/16″ | Style | Plug |
| Chamfer | Plug | Cutting Direction (HAND) | Right Hand |
| Coating | TiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 2090G |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
4.00000
Package Width
.37500
Package Height
.37500
Package Weight
0.025
