2070G 10-24 S/P H3 2FL

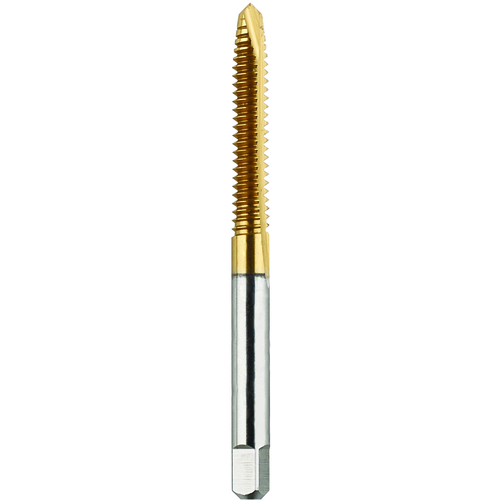

Spiral Point Tap; #10 - 24 ; 2-3/8″ OAL ; 2 FL ; HSS ; TiN ; H3 ; Series 2070G
| Thread Standard | NC | Cutting Edge Material | HSS |
| Thread Size | #10 - 24 | Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Thread Diameter Size (TDZ) | #10 | Thread Cutting Part Length (THL) | 7/8″ |
| Threads per Inch (TPI) | 24 | Flute Type | Straight |
| Thread Tolerance Class (TCTR) | H3 | End Shape | Spiral Point |
| Usable Length (LU) | 7/8″ | Style | Plug |
| Overall Length (OAL) | 2-3/8″ | Cutting Direction (HAND) | Right Hand |
| Chamfer | Plug | Coolant Supply Property (CSP) | External |
| Coating | TiN | Measurement Type | Machine Screw |
| Flute Count (NOF) | 2 | Series/List # | 2070G |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.00000
Package Width
.25000
Package Height
.25000
Package Weight
0.02
