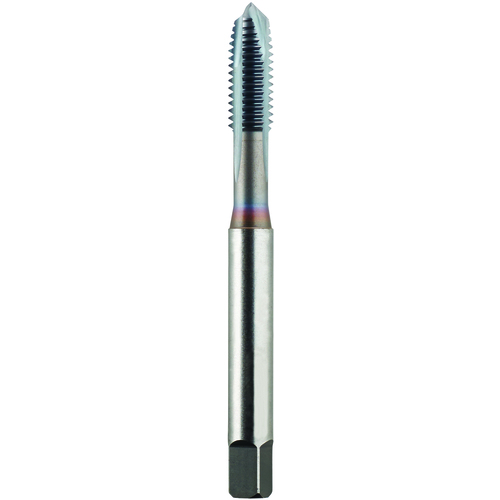

2088MC HPT M8 × 1.25 S/P
Spiral Point Tap; M8 × 1.25 mm ; 90 mm OAL ; 3 FL ; HSS-PM ; TiCN ; D5 ; Series 2088MC
| Thread Standard | NC | Cutting Edge Material | HSS-PM |
| Thread Size | M8 × 1.25 | Tool Type | High Performance Tap |
| Thread Diameter Size (TDZ) | M8 | Applicable Material | | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 1.25 mm | Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Thread Tolerance Class (TCTR) | D5 | Thread Cutting Part Length (THL) | 0.7874″ |
| Usable Length (LU) | 1.378″ | Style | Spiral Point |
| Overall Length (OAL) | 90 mm | Cutting Direction (HAND) | Right Hand |
| Chamfer | Plug | Coolant Supply Property (CSP) | External |
| Coating | TiCN | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Series/List # | 2088MC |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
4.00000
Package Width
.37500
Package Height
.37500
Package Weight
0.1
