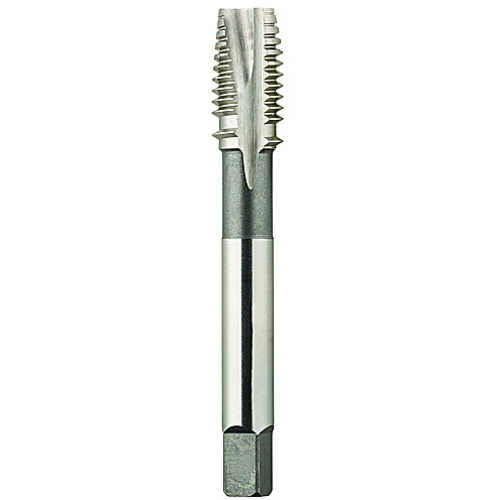

2092M HPT M12 × 1.50 S/P

‎Spiral Point Tap; M12 × 1.5 mm ; 3-3/8″ OAL ; 3 FL ; HSS-PM ; Uncoated ; D5 ; Series 2092M

Item # 30057

Brand: Morse Cutting Tools

MFG #: 30057

Legacy Part #: MT3330057

UPC #: 01028884 | 68612530057 | 686125300579

Trade Name: SINGLE TAP

Quantity Available

Thread Standard

Tool Type

High Performance Tap

Thread Size

M12 × 1.5

Applicable Material

| Aluminum / Non-Ferrous Materials |

Thread Diameter Size (TDZ)

M12

Connection Diameter Machine Side (DCONMS)

0.367″

Thread Pitch (TP)

1.5 mm

Thread Cutting Part Length (THL)

15/16″

Thread Tolerance Class (TCTR)

Drive Size (DRVS)

0.275″

Usable Length (LU)

‎1-21/32″

Flute Type

Straight

Overall Length (OAL)

‎3-3/8″

Style

Spiral Point

Chamfer

Plug

Cutting Direction (HAND)

Right Hand

Coating

Uncoated

Coolant Supply Property (CSP)

External

Flute Count (NOF)

Measurement Type

Metric

Cutting Edge Material

HSS-PM

Series/List #

2092M

Product Features

Remarks

‎? HPT?- High Performance Tap - Aluminum? Recommended for all types of aluminum alloys. CrN coating especially recommended for high-silicon aluminum alloys.? Spiral?Point Taps are designed fo refficient tapping of through holes and blind holes with adequate depth for chip accumulation at the bottom of the hole. The shearing action of the point provides freer cutting action and ejects the chips ahead of the tap, eliminating chip evacuation problems and chip damage to the threads. Shallower flutes also result in greater tap strength, allowing for higher cutting speeds.? Semi-Interrupted Thread (3-Flute taps only)? Plug?Style (3-5 thread chamfer) is the most common chamfer used for tapping applications in through holes and blind holes with sufficient bottom clearance.? CNC Reduced Neck Design enhances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap the work piece.? P/M Powder Metallurgy High Speed SteelPremium Steel Engineered For:? Hardness / Wear Resistance / Tool / Heat Resistance / Toughness and Strength / Performance under Difficult Cutting Conditions / Higher Cutting Speeds / Increased Productivity

Country of Origin

USA

Shipping Info

Package Length

4.00000

Package Width

.50000

Package Height

.50000

Package Weight

0.13
