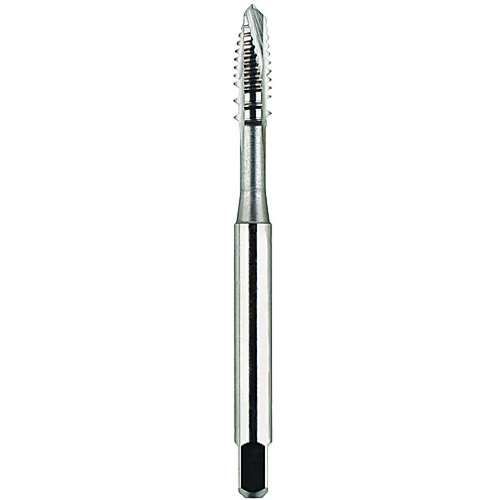

‎10-32 Dia. - GH2 - 3 FL - Premium - HSS - CrN - Plug - Spiral Point Tap Series/List #2092S

‎Spiral Point Tap; #10 - 32 ; 2-3/8″ OAL ; 3 FL ; HSS-PM ; CrN ; H2 ; Series 2092S

Item # 60711

Brand: Morse Cutting Tools

MFG #: 60711

Legacy Part #: MT3360711

UPC #: 01029200 | 686125607111

Trade Name: SINGLE TAP

Quantity Available

Thread Standard

Tool Type

High Performance Tap

Thread Size

‎#10 - 32

Applicable Material

| Aluminum / Non-Ferrous Materials |

Thread Diameter Size (TDZ)

#10

Connection Diameter Machine Side (DCONMS)

0.194″

Threads per Inch (TPI)

Thread Cutting Part Length (THL)

1/2″

Thread Tolerance Class (TCTR)

Drive Size (DRVS)

0.152″

Usable Length (LU)

7/8″

Flute Type

Straight

Overall Length (OAL)

‎2-3/8″

Style

Spiral Point

Chamfer

Plug

Cutting Direction (HAND)

Right Hand

Coating

CrN

Coolant Supply Property (CSP)

External

Flute Count (NOF)

Measurement Type

Machine Screw

Cutting Edge Material

HSS-PM

Series/List #

2092S

Product Features

Remarks

‎? HPT?- High Performance Tap - Aluminum? Recommended for all types of aluminum alloys. CrN coating especially recommended for high-silicon aluminum alloys.? Spiral?Point Taps are designed fo refficient tapping of through holes and blind holes with adequate depth for chip accumulation at the bottom of the hole. The shearing action of the point provides freer cutting action and ejects the chips ahead of the tap, eliminating chip evacuation problems and chip damage to the threads. Shallower flutes also result in greater tap strength, allowing for higher cutting speeds.? Semi-Interrupted Thread (3-Flute taps only)? Plug?Style (3-5 thread chamfer) is the most common chamfer used for tapping applications in through holes and blind holes with sufficient bottom clearance.? CNC Reduced Neck Design enhances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap the work piece.? P/M Powder Metallurgy High Speed SteelPremium Steel Engineered For:? Hardness / Wear Resistance / Tool / Heat Resistance / Toughness and Strength / Performance under Difficult Cutting Conditions / Higher Cutting Speeds / Increased Productivity

Country of Origin

USA

Shipping Info

Package Length

2.40000

Package Width

.10000

Package Height

.10000

Package Weight

0.03
