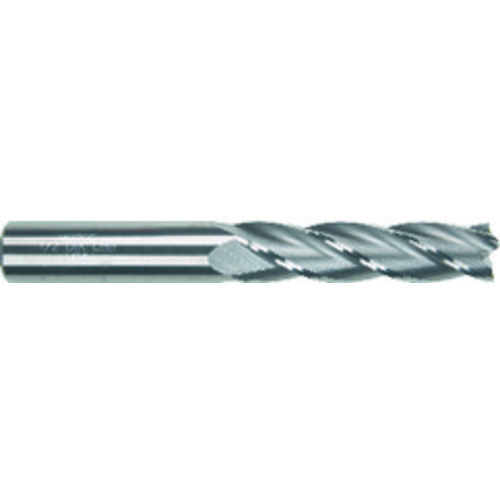

1/4″ × 1/4″ × 1 1/8″ × 3″ 4 Flute Single End Carbide Finishing Center Cutting End Mill-TiCN
SQ End Mill; 1/4″ Dia. × 1-1/8″ LOC × 1/4″ Shank Dia. × 3″ OAL ; 0″ RE ; 4 FL ; 1-1/8″ LBS ; Carbide ; TiCN ; Series 5955C
| Cutting Diameter (DC) | 1/4″ | Application | Finishing |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Corner Radius (RE) | 0″ |
| Depth of Cut Maximum (APMX) | 1-1/8″ | Tool Type | Single End |
| Overall Length (OAL) | 3″ | Length Group | Long |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TiCN | Style | Finishing |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.25″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Square | Series/List # | 5955C |
| Usable Length (LU) | 1-1/8″ |
Product Features
| Remarks | •Solid Carbide 4-Flute Single End Mills •TiCN Coated Long Length | Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
.37500
Package Weight
0.074
