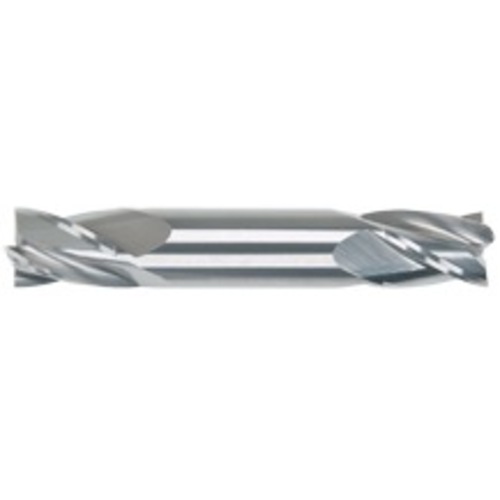

3/8″ × 3/8″ × 9/16″ × 2 1/2″ 4 Flute Double End Carbide Finishing Center Cutting End Mill-TiN
SQ End Mill; 3/8″ Dia. × 9/16″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; TiN ; Series 5946G
| Cutting Diameter (DC) | 3/8″ | Application | Finishing |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Corner Radius (RE) | 0″ |
| Depth of Cut Maximum (APMX) | 9/16″ | Tool Type | Double-End |
| Overall Length (OAL) | 2-1/2″ | Length Group | Stub |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TiN | Style | Finishing |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.375″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Square | Series/List # | 5946G |
| Usable Length (LU) | 9/16″ |
Product Features
| Remarks | •Solid Carbide 4-Flute Double End Mills •Stub Length TiN Coated | Country of Origin | USA |
Shipping Info
Package Length
2.50000
Package Width
2.00000
Package Weight
0.16
