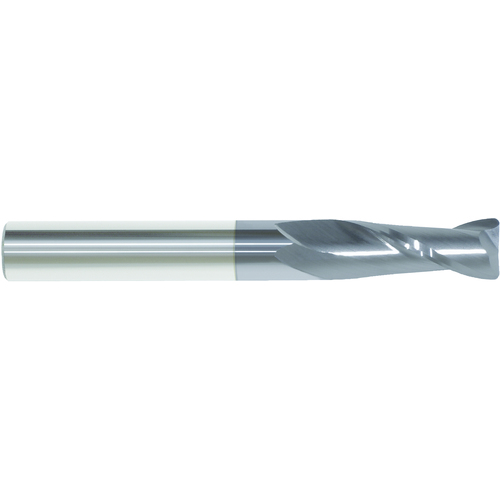

1″ × 1″ × 4″ 0.0600″ C/R 2 Flute Single End Carbide Finishing End Mill-ALTiN Series/List #5967T
| Cutting Diameter (DC) | 1″ | Application | Finishing |
| Connection Diameter Machine Side (DCONMS) | 1″ | Corner Radius (RE) | 0.060″ |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Tool Type | Single End |
| Overall Length (OAL) | 4″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Style | Finishing |
| Flute Count (NOF) | 2 | Decimal Equivalent | 1″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 5967T |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.06″ |
| Usable Length (LU) | 1-1/2″ |
Product Features
| Country of Origin | United States |
Shipping Info
Package Length
4.75000
Package Width
1.00000
Package Height
1.00000
Package Weight
1.318
